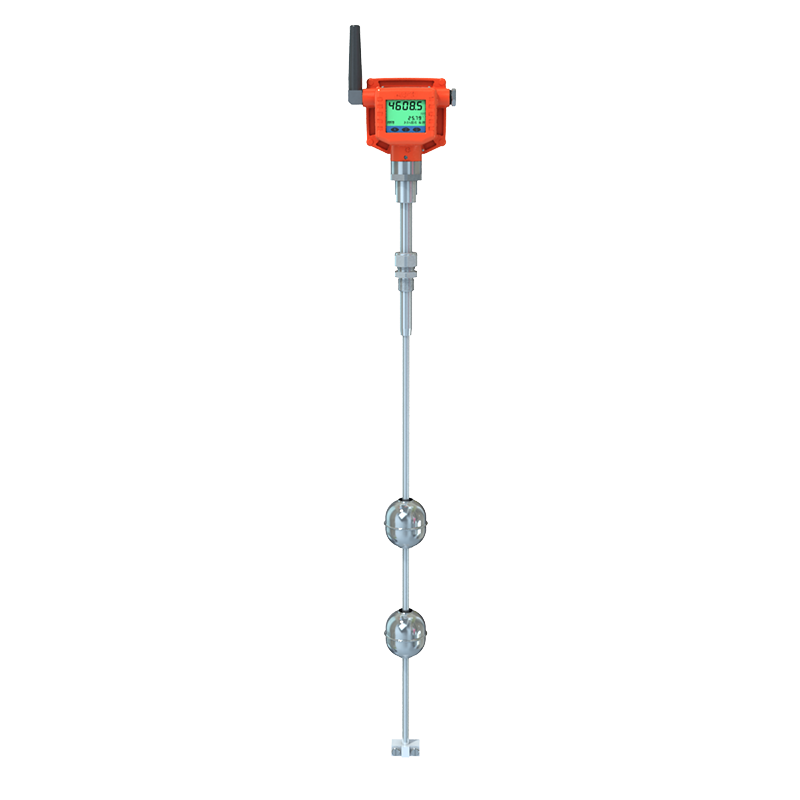

ACL-Z Wireless Magnetostrictive Liquid Level (Soft Pole & Hard Pole)
Summarization
| Model | Wireless magnetostrictive level meter ACL (optional single floater) | |||
|
|
||||
| Brief Introduction | ACL-Z series wireless magnetostrictive level meter is high-tech intelligent level meter that we research and develop according to the requirements of industrial field, and we adopt the technology of sensor signal processing, mathematical modeling, information operation and intelligent communication technology accumulation. This gauge adopts the magnetoctrictive theory and has the advantages of high precision, long linear range and absolute position measurement, which can measure the tank liquid level accurately. It also has the advantages of high precision, strong environment adaptability, high reliability, simple installation, convenient maintenance. Wireless communication integrated the two most popular industrial wireless communication modes: ZigBee, WirelessHART, adopted the advanced and perfect software management technology, micro power consumption device with data alarm, emergency, instrument faults, such as battery alarm priority mechanism, ensure the data real-time state monitoring and instrumentation, built-in high-capacity high-performance lithium batteries. Realize the remote real-time monitoring, wireless transmission, no need site wiring, saves on the ordinary instrument field wiring required, save the manpower and construction cost. This level meter is widely used in petroleum, chemical, food, medicine, and other areas of the level measurement, and gradually replaces the other traditional liquid level meter; it has been the first choice of the liquid level measuring instrument. | |||
| Measuring theory | When ACL-Z series wireless magnetostrictive level meter sensor works, the sensor circuit part will inspire a pulse current on the wire waveguide, when this current diffuses along the waveguide, it will produce the impulse current magnetic field around the waveguide. Magnetostrictive theory, namely: strain pulse produced when different magnetic fields intersect, the detected time can calculate the accurate position of intersection. There is a float equipped outside sensor rod, this float can move up and down along with the change of the level. There is a group of permanent magnetic ring inside the float. When the impulse current magnetic field meet the circular magnetic field produced by float, the magnetic field around the float will change, so as to make the waveguide wire made of magnetostrictive materials produce a torsion wave pulse in float position, this pulse will be returned along the waveguide at a fixed speed and detected by the detection institution. By measuring the time lag between the pulse electric current and torsion wave, we can know the float location that is liquid height. Magnetostrictive liquid meter technology advantage: magnetostrictive liquid level meter is suitable for high precision requirement of clean liquid level measurement, precision can reach 1 mm, the latest product precision can reach 0.1 mm. | |||
| Application | various types of tanks used in oil storage and processing, such as flash tank, separator, etc. | |||
| liquid level measurement, control and monitoring field such as chemical industry, water treatment, pharmaceutical, electric power, papermaking, metallurgy, boiler, etc. | ||||
| Characteristics | high and low temperature resistance, corrosion resistance, friction resistance, resistance to high pressure | |||
| resistance to dust, can measure steam, can install belt material without stop working | ||||
| suitable for tank side mount, such as flash tank, separator, heating furnace level measurement | ||||
| the backlit LCD display, easy to field observation at night | ||||
| against lightning, anti-interference, explosion-proof design, used in flammable and explosive place | ||||
| intelligent real-time self-tuning, accurate, stable and reliable | ||||
| long service life, maintenance free, improve project quality and production efficiency | ||||
| AES-128 encryption algorithm, the network authentication and authorization, safe and reliable data | ||||
| Automatic frequency hopping technology, has a unique ability to resist interference | ||||
| Parameters
Wireless Technology |
Measuring Range | 50-20000mm(customized) | Hard pole: 50-4000mm | |
| Soft pole: 4000-20000mm | ||||
| Accuracy grade | 0.2grade±1mm、0.5grade±1mm、1grade±1mm | |||
| Linear error | ≤0.05％FS | |||
| Repeated accuracy | ≤0.002%FS | |||
| Power supply | 24VDC±10% | |||
| Output signa | 4-20mA | |||
| Communication | RS485(Modbus RTU) | |||
| Operating Environment | temperature -30℃～70℃ | |||
| relative humidity: ＜90% | ||||
| barometric pressure 86-106KPa | ||||
| Medium temperature | -40~85℃ | |||
| Working pressure | ordinary pressure to 10MPa | |||
| Medium density | 0.5-2.0g/cm3 | |||
| Protection Degree | IP65 | |||
| Explosion-proof grade | ExdIIBT4 Gb | |||
| Wireless spectrum | ISM（2.4~2.5）GHz（IEEE 802.15.4 DSSS） | |||
| Wireless authentication | Zigbee：FCC ID: MCQ-XBS2C，IC: 1846A-XBS2C | |||
| WirelessHART：IEC 62591 HART，GB/T 29910.1～6-2013 HART | ||||
| Wireless protocol | Zigbee：Zigbee 2007（compatible with CNPC oil and gas A11-GRM communication protocol） | |||
| WirelessHART：IEC62591 | ||||
| Receive sensitivity | ZigBee：-100dBm | |||
| WirelessHART：-95dBm | ||||
| Transmitting power | 8dBm（6.3mW） | |||
| Transmitting distance | 300m 800m | |||
| Network safety | AES-128 encryption algorithm, the network authentication and authorization | |||
| Immunity ability | automatic frequency hopping technology | |||
| Installation Mode | Top mounting | Side mounting | ||
| Product model selection: | ||||
Our Advantages
1. Specializing in the field of measurement for 16 years
2. Cooperated with a number of top 500 energy companies
3. About ANCN:
*R&D and production building under construction
*Production system area of 4000 square meters
*Marketing system area of 600 square meters
*R&D system area of 2000 square meters
4. TOP10 pressure sensor brands in China
5. 3A credit enterprise Honesty and Reliability
6. National "Specialized in special new" little giant
7. Annual sales reach 300,000 units Products sold worldwide
Factory
Our Certification
Explosion Proof Certificate
Certificate of Patent
Customization Support
If the product shape and performance parameters have special requirements, the company provides customization.
Product Advantages Introduction
One of the main advantages of our ACL-Z series level gauge is that it utilizes the theory of magnetostriction. This theory allows us to achieve unprecedented precision and accuracy in level measurement. With its high accuracy capabilities, operators can rely on the device for accurate readings, making it easier to monitor liquid levels in a variety of tanks and containers. Whether it's a small job or a large industrial plant, our level gauges ensure accurate and reliable measurements, saving time and effort.
The ACL-Z series of liquid level gauges have an extra long linear range, making them capable of measuring liquid levels in tanks of various sizes. This flexibility is critical for industries dealing with different storage capacities, as it eliminates the need for multiple devices. With our level gauges, companies can optimize resources and reduce costs while enjoying the benefits of a single multifunctional measuring instrument.
Convenience and efficiency are further enhanced with our wireless design magnetostrictive level gauges. With no wired connections required, operators can easily install and maintain the unit, reducing installation time and minimizing risks associated with wiring systems. This wireless capability also increases safety, as there are no physical connections that could create hazards or cause accidents. Additionally, this wireless capability enables real-time data transmission and remote monitoring, allowing operators to remotely track fluid levels and make immediate decisions based on the collected data.
ACL-Z series wireless magnetostrictive liquid level gauges meet a wide range of industry needs. Whether monitoring liquid levels in storage tanks, petrochemical plants, water treatment facilities, or any other industrial environment, our products provide accurate and reliable measurements. With its absolute position measurement, operators can accurately determine the exact level of liquid in the tank, allowing precise control and efficient operation.
In terms of construction, our level meters are available in two options: soft stem and hard stem models. Soft stem models are ideal for tanks with limited access where traditional rigid stems can be difficult to install. Hard rod models, on the other hand, are for tanks with standard accessibility, offering increased stability and durability. Both options are equipped with state-of-the-art technology and performance, ensuring the best results in all applications.
