Digital Temperature Switch ACT-131K
Details
|
Main Features |
² Temperature preset switch point and switch point action delay function. | |||
| ² Switch output function is optional (hysteresis function, window function) | ||||
| ² It is equipped with a switch point action led for easy observation. | ||||
| ² It is convenient to adjust the buttons and set various parameters on site. | ||||
| ² Output of 2-way switch quantity, with load capacity of 1.2A. | ||||
| ² 4~20mA analog output. | ||||
| ² The display window can be rotated at 330℃. | ||||
| Main Parameters | Control Range | -200℃~500℃ | Control Accuracy | 0.5%F.S |
| Stability | ≤0.2%F.S /year | Display Accuracy | ±0.1%F.S | |
| Display Mode | Four Digits LED | Display Range | -1999~9999 | |
| Power Supply | 24V±20% | Max. Consumption | <1W | |
| Loading Capacity | <24V/1.2A | Switch Type | PNP/NPN | |
| Protection Degree | IP65 | Connector Material | Stainless Steel | |

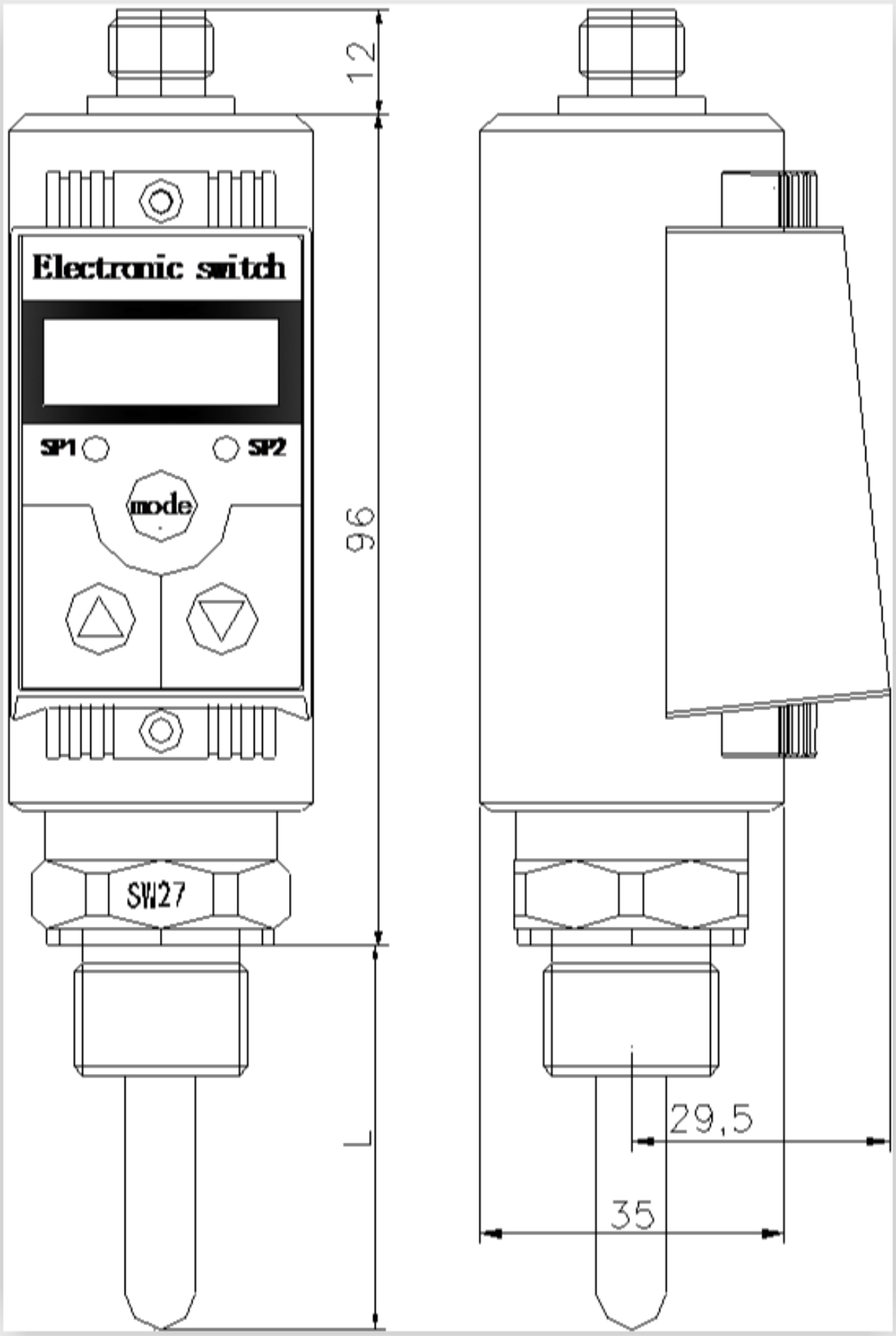

Overall dimensions(Unit:mm)
Selection Guide
|
Selection Guide of ACT-131K Digital Temperature Switch |
|||||||
| ACT-131K | |||||||
| Display Part | X | Rotate | |||||
| N | No Rotate | ||||||
| Electrical Connection | H | One Analog (Hirschmann) | |||||
| M | Two way switch + One Analog (M12-5P) | ||||||
|
Thread Connection |
G12 | G1/2 | |||||
| M20 | M20*1.5 | ||||||
| Switch Type | P | PNP | |||||
| N | NPN | ||||||
| Measuring Range | According to customer’s request | ||||||
| Insert Depth | L...mm | ||||||
Our Advantages
1. Specializing in the field of measurement for 16 years
2. Cooperated with a number of top 500 energy companies
3. About ANCN:
*R&D and production building under construction
*Production system area of 4000 square meters
*Marketing system area of 600 square meters
*R&D system area of 2000 square meters
4. TOP10 pressure sensor brands in China
5. 3A credit enterprise Honesty and Reliability
6. National "Specialized in special new" little giant
7. Annual sales reach 300,000 units Products sold worldwide
Factory
Our Certification
Explosion Proof Certificate
Certificate of Patent
Customization Support
If the product shape and performance parameters have special requirements, the company provides customization.
Product Advantages Introduction
The ACT-131K Digital Temperature Switch is a game-changing product that combines several functions into one, making it the ultimate solution for temperature control in a variety of industries. With its state-of-the-art technology and versatility, this digital temperature switch will redefine the way temperature is measured, displayed, transmitted and switched.
Specifically designed to meet the needs of diverse industries such as water supply, petroleum, chemical, mechanical and hydraulic industries, the ACT-131K digital temperature switch is a versatile device with unrivaled performance and efficiency.
One of the key features of the ACT-131K digital temperature switch is its ability to measure temperature accurately. The device is equipped with advanced sensors that ensure accurate temperature readings, allowing businesses to maintain optimal control over their operations. Whether monitoring the temperature of water, chemicals or machinery, this digital temperature switch provides real-time information to ensure critical processes are well regulated.
In addition, the ACT-131K digital temperature switch has an intuitive display interface, allowing users to easily monitor temperature changes. The bright and clear digital screen provides a user-friendly experience, allowing operators to view temperature readings quickly and easily. This capability increases productivity and removes guesswork, ensuring timely and efficient decision-making.
The versatility of the ACT-131K digital temperature switch goes beyond measurement and display functions. With its transmission and switching functions, the device can be seamlessly integrated into existing systems. The transferred temperature data can be used for further analysis or shared with other devices, facilitating a smooth workflow. Additionally, the toggle function of this digital temperature switch enables users to activate alarms or control systems based on preset temperature thresholds, minimizing human intervention and preventing potential problems from escalating.
The rugged construction of the ACT-131K digital temperature switch ensures durability, making it suitable for use in the harshest environments. Its rugged design can withstand harsh conditions such as extreme temperatures, corrosive substances and high pressures. This reliability ensures that equipment operates consistently and accurately, giving businesses across industries peace of mind.
