Electromagnetic Flow Meter ACF-LD

Short Description:

ACF-LD series Electromagnetic flow meter is a kind of inductive instrument for measuring the volume flow rate of conductive medium. It can output standard current signal for recording, adjustment and control at the same time of field monitoring and display. It can realize automatic detection control and long-distance transmission of signal.It can be widely used in water supply, chemical industry, coal, environmental protection, light textile, metallurgy, paper making and other industries in the flow measurement of conductive liquid.

Send email to us

Product Detail

Product Tags

Details

Features	No obstructing flow parts in measuring tube, no pressure loss, low requirement for straight pipe
	variety of sensor linings and electrode materials to choose
	the measurement is unaffected by changes in fluid density, viscosity, temperature, pressure, and conductivity
	not affected by the direction of the fluid
	the range ratio is 1:120 (0.1m/s ~ 12m/s)
	It has the function of control measurement and alarm, and can adapt to different fluid medium
	automatically record the power break time of the instrument system, make up the leakage flow
Main Parameters	Nominal diameter	DN10～DN3000	Nominal pressure	0.6MPa～42MPa
	Max flow rate	15m/s	Accuracy	0.2%F.S、0.5%F.S
	Electrode form	Fixed（DN10-DN3000） Blade (DN100-DN2000）	Fluid conductivity	≥50μs/cm
	Flange material	Carbon steel/stainless steel	Mounting type	Flange/insert/clamp
	Environment temperature	-10℃～60℃	IP Grade	IP65
	Earthing ring material	SS、Ti、Ta、HB/HC	Protection flange material	Carbon steel/stainless steel

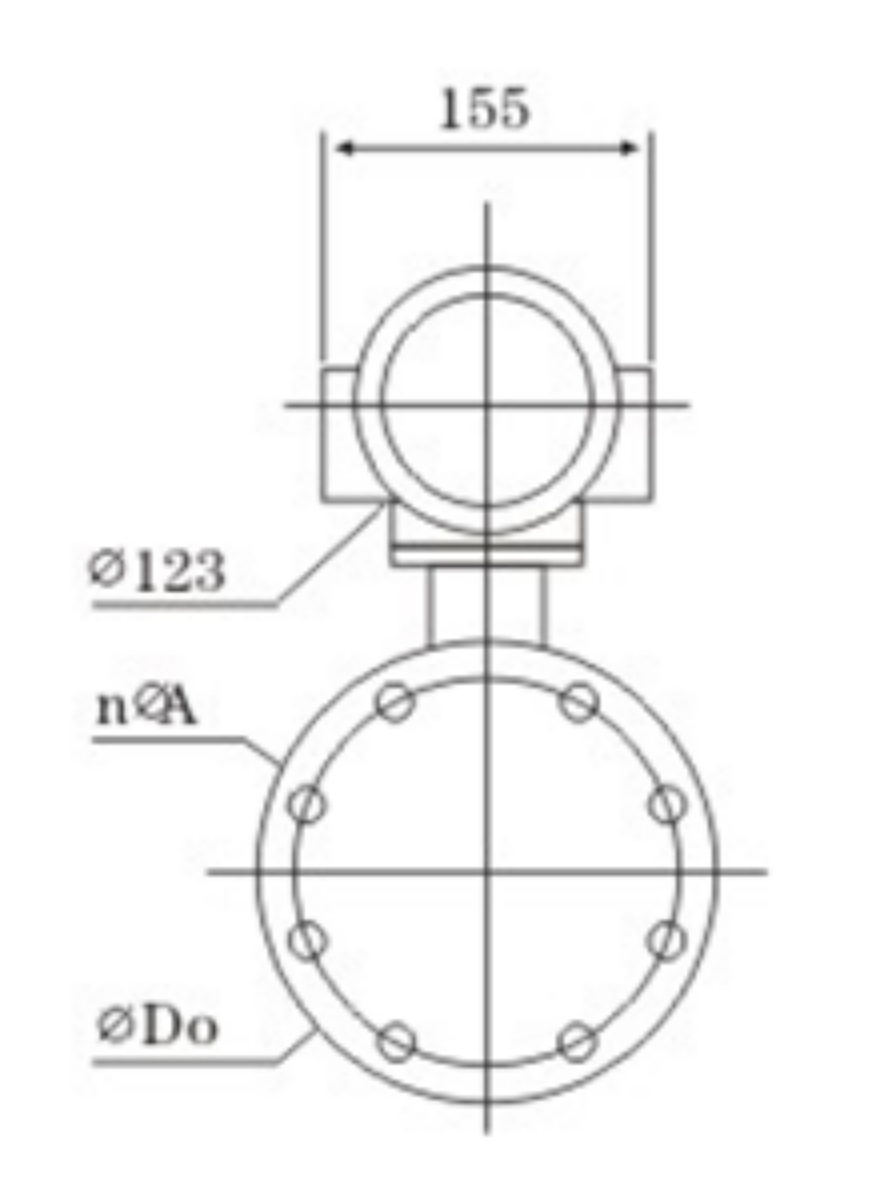

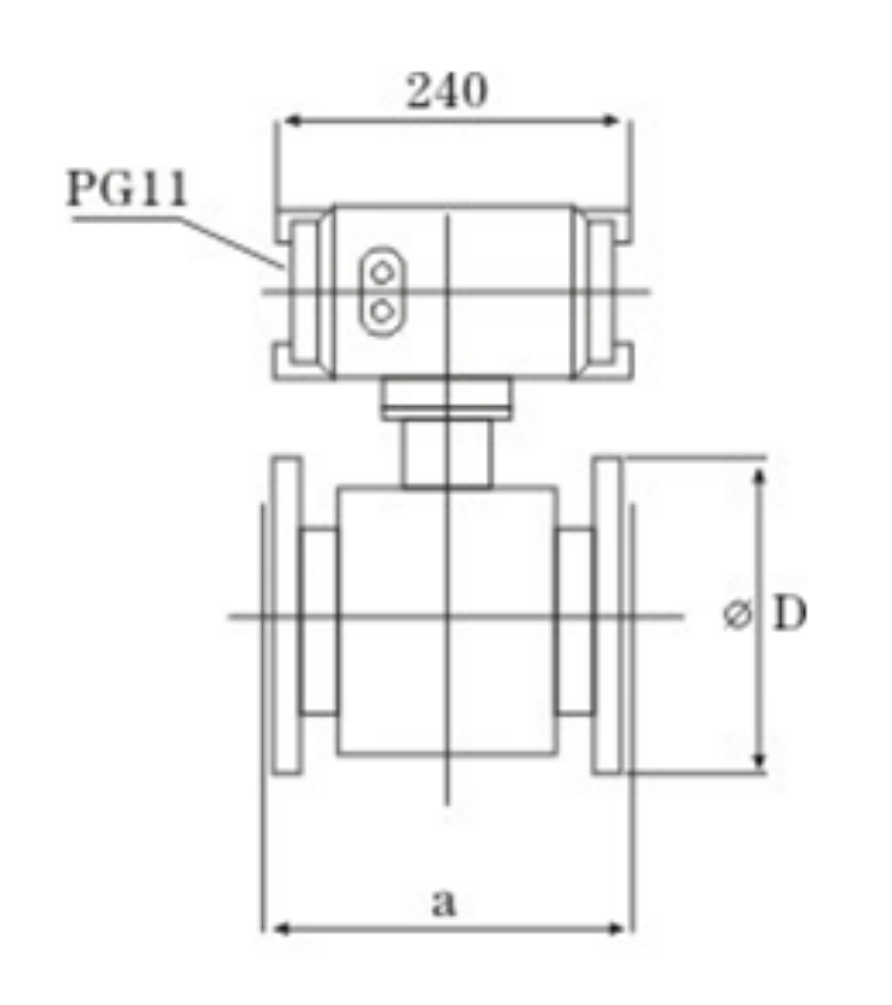

Erection structure drawing

Selection Guide

ACF-LD	Code	Pipe（mm）
	DN	10～3000
		Code	Nominal pressure
		PN	6～40
		TS	Customize
			Code	Electrodes material
			1	SS
			2	HC Alloy
			3	Ta
			0	Customize
				Code	Lining material
				1	PTFE
				2	Rubber
				3	Customize
					Code	Accessory
					0	None
					1	grounding electrode
					2	Ground ring
					3	Pairing flanges
