ACF-LWGY Turbine Flow Meter
Details
|
Main Features |
The original pulse frequency range (10Hz ~ 1.5khz), the signal resolution is strong. | |||
| Wide measuring range, 10:1～20:1. | ||||
| It can be divided into two parts, and the distance from the sensor to the display instrument is up to 1000m. | ||||
| Compact and lightweight structure, easy installation and maintenance, large circulation capacity. | ||||
| Good repeatability, in trade settlement is the preferred flow meter. | ||||
| Main Parameters | Nominal Diameter | DN4~DN200 | Nominal Pressure | 1.6MPa~6.3MPa |
| Power Supply | 12V DC / 24V DC | Accuracy | 0.5%F.S, 1%F.S | |
| Output Signal | Pulse, 4~20mA | Communication | RS485, Hart | |
| Medium Temperature | -20℃~120℃ | Environmental Temperature | -20℃~55℃ | |

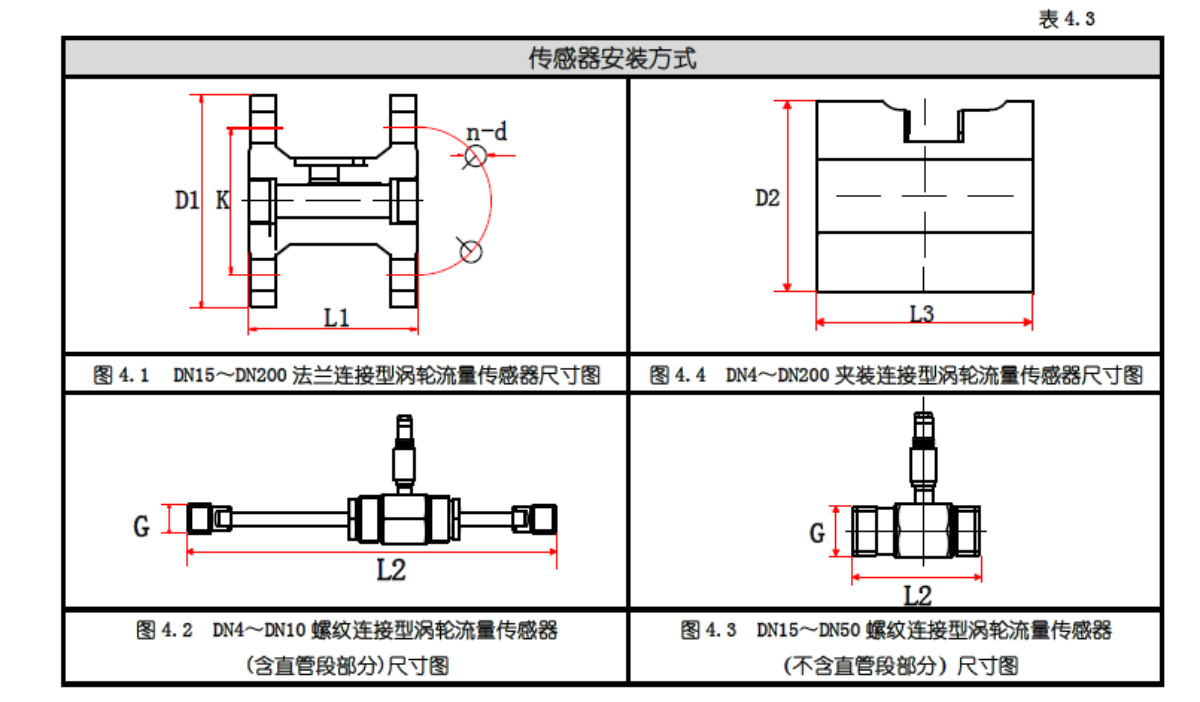

Installation
Selection
| ACF-LWGY | Code | DN(mm) | ||||
| DN | 4~200 | |||||
| Code | Nominal Pressure | |||||
| PN | 16~63 | |||||
| TS | Special Orders | |||||
| Code | Output Signal | |||||
| I | 4~20mA | |||||
| P | Pulse | |||||
| Code | Communication | |||||
| R | RS485 | |||||
| H | HART | |||||
| Code | Turbine Type | |||||
| 0 | Wide Range Turbine | |||||
| 1 | Ordinary Turbine | |||||
