ACF-RSZL Thermal Gas Mass Flow Meter

Short Description:

ACF-RSZL series thermal gas mass flow meter is designed based on the principle of thermal diffusion. The instrument adopts the method of constant temperature difference to accurately measure the gas. It has the advantages of small volume, high degree of digitization, convenient installation and accurate measurement.

Send email to us

Product Detail

Product Tags

Details

Maine Features	Without temperature and pressure compensation, the measurement is convenient and accurate.
	Wide range ratio for gas flow rates as high as 100Nm/s and as low as 0.1Nm/s.
	The sensor has no moving parts or pressure sensing parts, and has good seismic performance.
	Where site conditions permit, installation and maintenance without interruption can be achieved.
	Can be with voltage, current, relay alarm function.
	Overall digital circuit measurement, measurement accuracy, easy maintenance.
Maine Parameters	Nominal Diameter	DN15~DN4000	Flow Range	0.1Nm/s~120Nm/s
	Accuracy	1%F.S~2.5%F.S	Response Speed	1s
	Power Supply	24V DC/220V AC	Sensor Material	Carbon Steel/ Stainless Steel
	Pipe Material	Carbon Steel/ Stainless Steel/ Plastic	Protection Degree	IP65

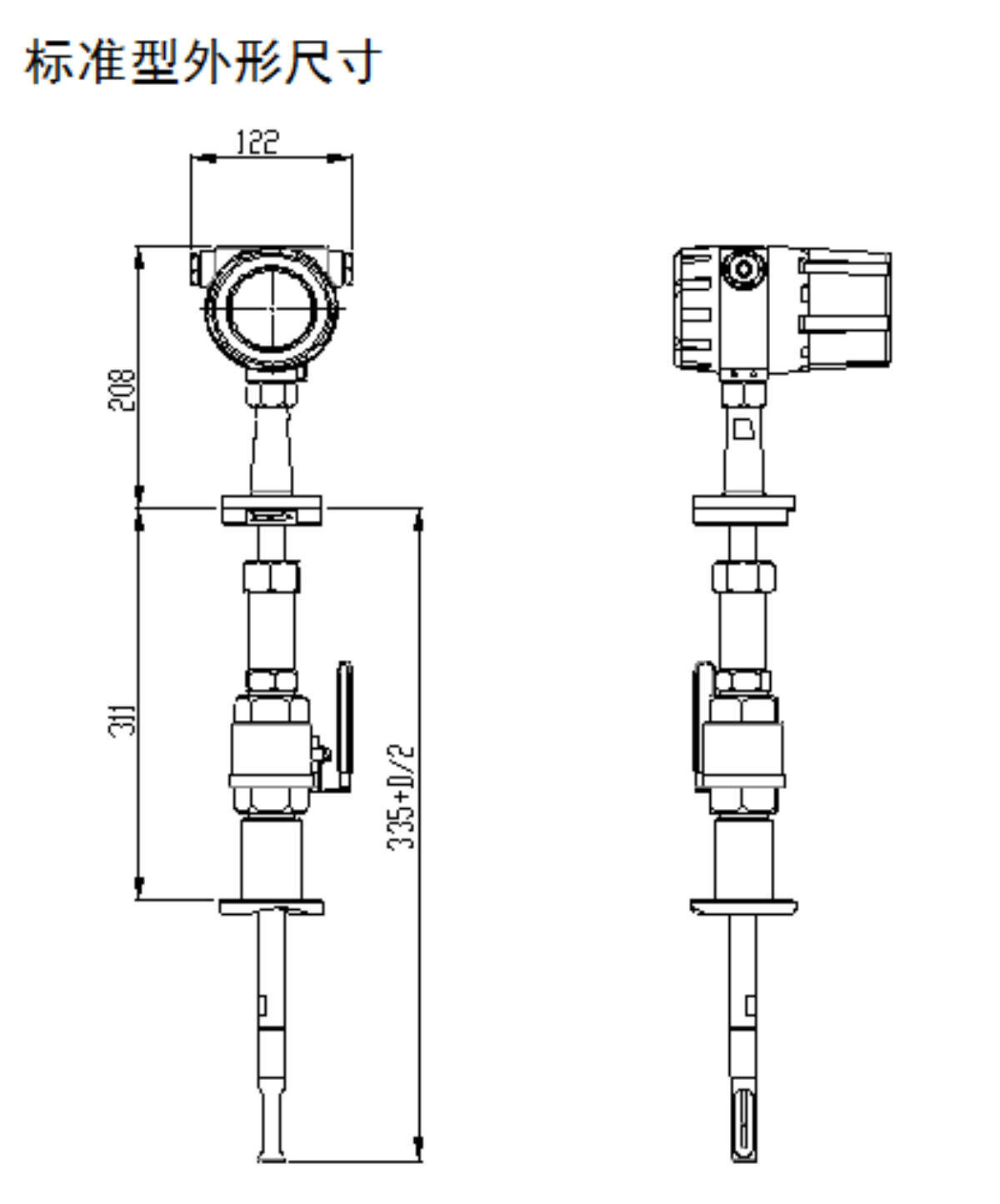

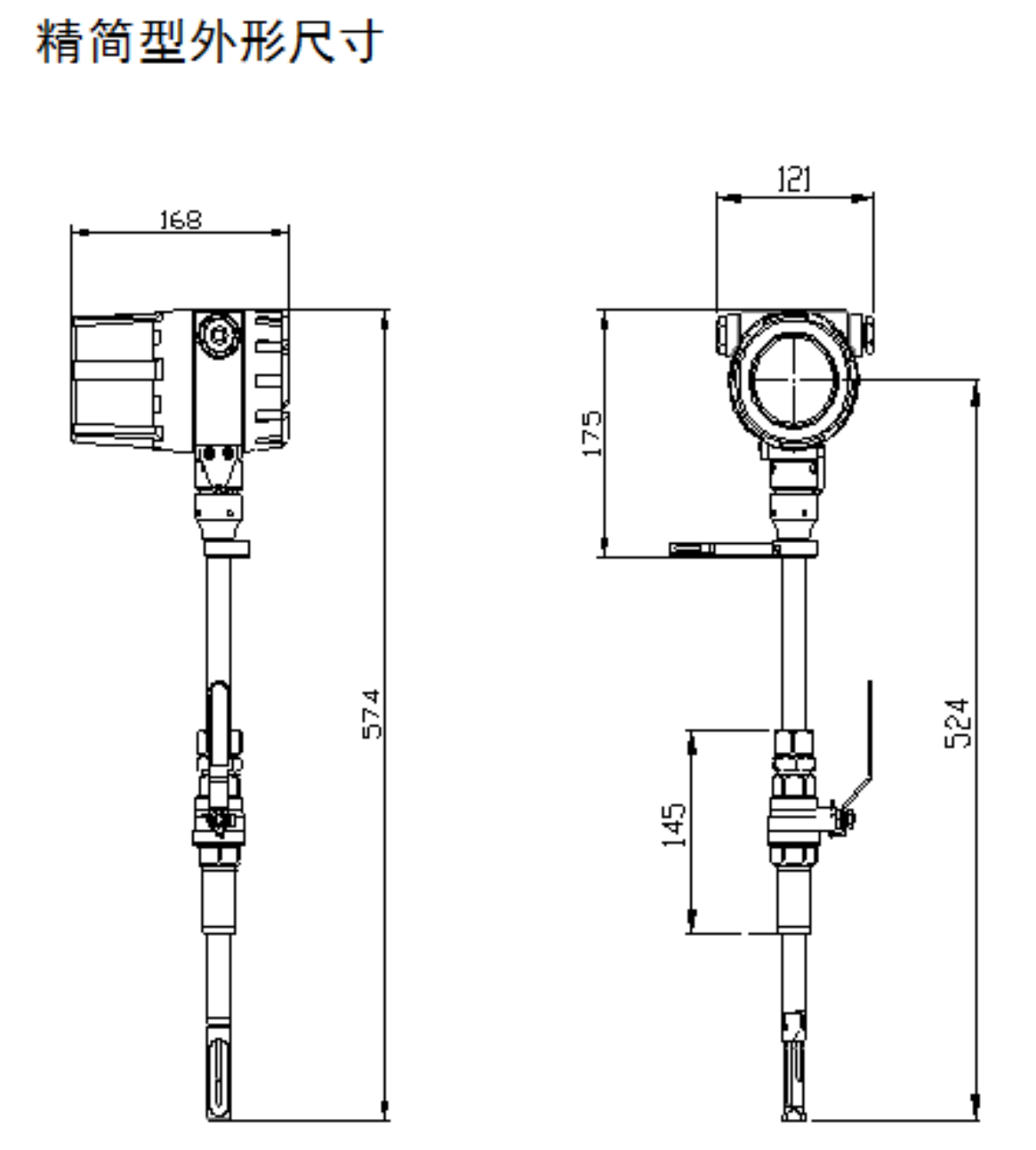

Installation

Selection

ACF-RSZL	Code	DN(mm)
	DN	15~4000
		Code	Structure Type
		C	Insert Type

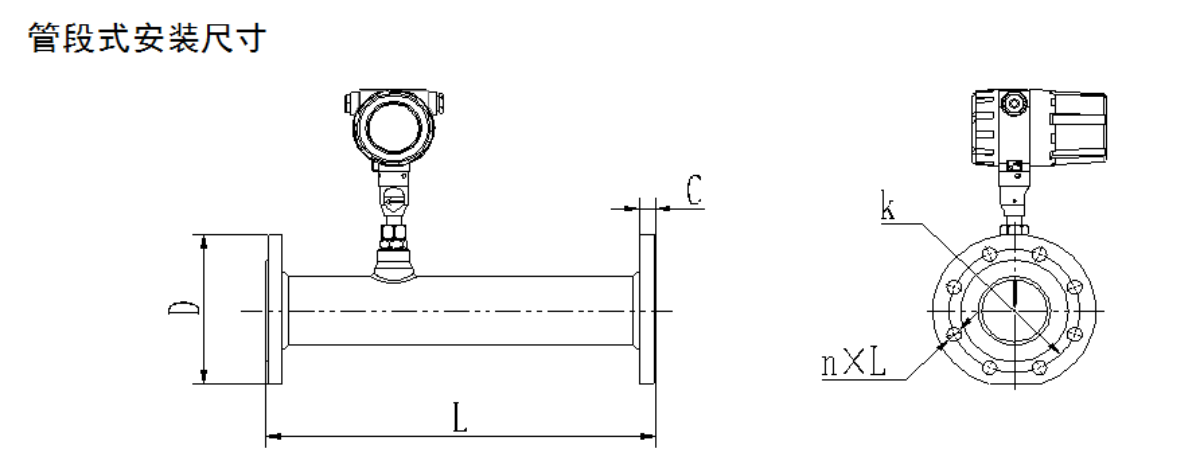

		G	Pipe Type
			Code	Type
			F	Split Type
			Y	Integrated Type
				Code	Output Signal
				I	4~20mA
				P	Pulse
					Code	Communication
					R	RS485
					H	Hart
